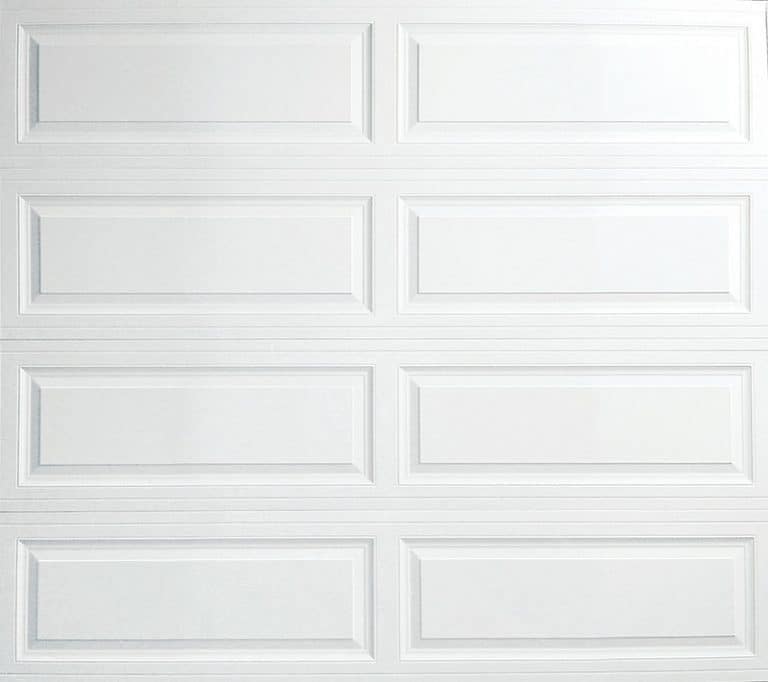

590 591 Raised Ranch Panel

GET A FREE ESTIMATE

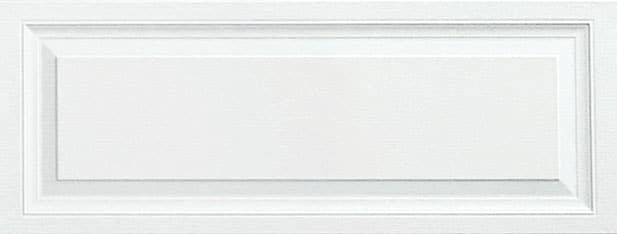

Constructed of top quality materials, highly detailed raised ranch panel, deep woodgrain texture, and two coat prefinished paint system all combine to enhance the beauty of your home.

25 Gauge Steel

25 Gauge Steel

Hot dipped galvanized steel construction with hemmed inside return rail provides superior strength and durability.

1.0 Mil Paint System

1.0 mil paint system

Includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking, while providing consistent color from panel to panel and more durability.

Rolled Safety Edges

Rolled safety edges on section joints

Eliminates sharp edges, and provides extra strength.

Hinge Plates

19 gauge hot dipped galvanized stiles

Heavy duty metal stiles give strong rigid support for all hinges, rollers, and operator attachment.

Stiles attached with rivets

Stiles attached with rivets

Provides superior strength when compared to common sheet metal joining methods.

Tongue and Groove Meeting Rails

Tongue and groove meeting rails

For superior strength and better sealing against wind, rain, and snow.

Rigid Aluminum Retainer

Rigid aluminum retainer with weatherstrip

Provides added strength while securing replaceable U-type bottom astragal weatherstrip to help keep the elements out.

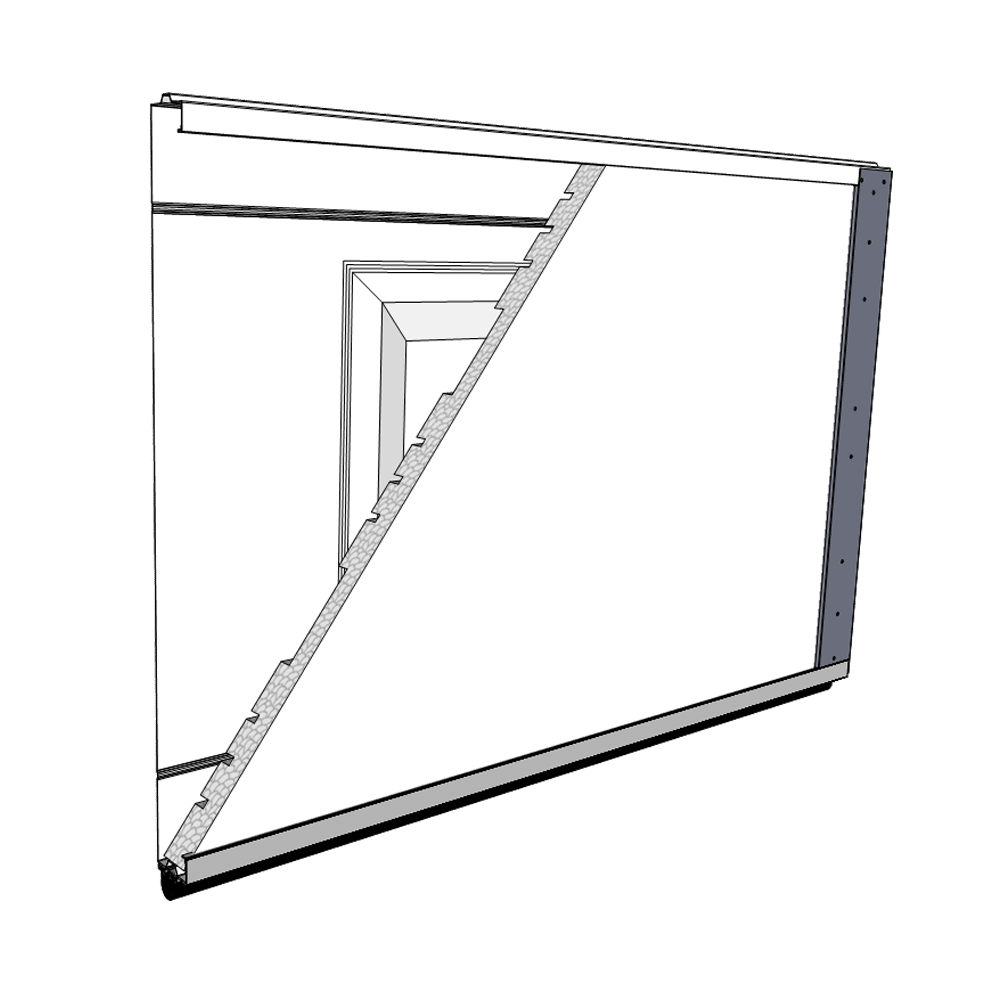

6.85 R Value Insulation

R-Value 6.85

Enhances your home’s energy savings, makes your door operation quieter, and reduces exterior noise in your garage.

* 591 Feature
CFC Free Expanded Polystyrene

CFC free expanded polystyrene

Environmentally friendly insulation that will not degrade with vibration or time.

* 591 Feature
Vinyl Interior Skin

High impact plastic back cover

Protects the insulation, and enhances the interior look of your garage door.

* 591 Feature

White

Almond

Sandstone

WIDTHS:

STAMP LAYOUT

HEIGHTS:

6’6″, 6’9″, 7’0″, 7’6″, 7’9″, 8’0″

#306 Sherwood

#305 Williamsburg

#591 Cascade

#397 Stockton

#597 Stockbridge

#897 Prairie



Clear

Satin

Bronze

Gray

Gray Lite 31

Pattern 62
